SunSpec Modbus Server¶

The DER Simulator hosts a SunSpec-compliant Modbus TCP server that exposes every SunSpec model the loaded device configuration populates. Anything you can do with a real DER's Modbus interface — read the nameplate, scan the model list, write a grid-support setpoint, drive curves — works against the simulator unchanged.

Quick start¶

The Modbus server is on by default; the only required flag is the TCP port if you want something other than 8502:

./sim --device_type PV-3Phase --mb_port 8502

For multi-device runs (-N COUNT) each device gets its own port starting from --mb_port and incrementing by 1. With -N 4 --mb_port 8502 the four simulators bind 8502 / 8503 / 8504 / 8505.

CLI flag reference¶

What you can do over Modbus¶

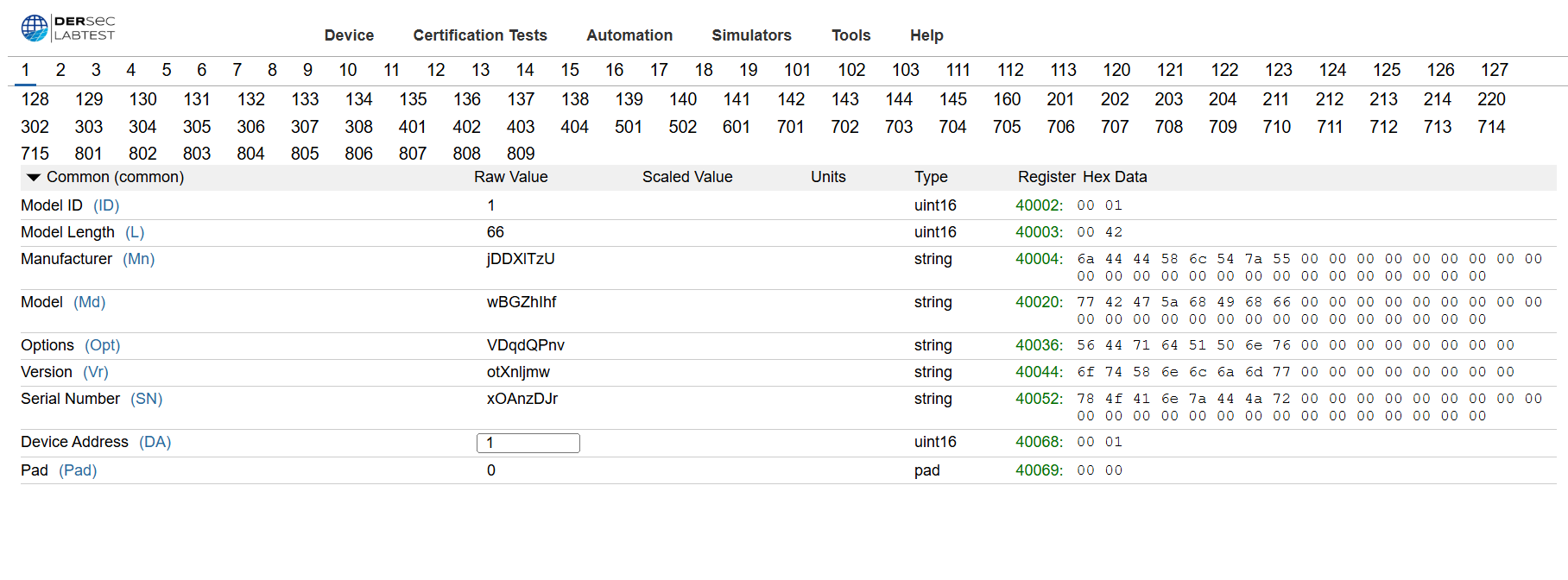

The simulator implements every SunSpec model its device config loads. The dashboard's nameplate and grid-support pages talk to the same address map an external Modbus client would, so anything the dashboard shows you can read directly from a SunSpec scanner.

Concretely:

The 30004 model is dersim-specific — it's how an external test harness drives the simulator's environment (irradiance, grid voltage, grid frequency) at runtime without restarting. Production DERs don't have a 30004 equivalent; the dashboard's Simulation Inputs page writes the same fields.

Secure SunSpec Modbus (TLS + mTLS)¶

The Secure SunSpec Modbus specification requires TLS 1.2 with mutual client authentication and a specific cipher set. The simulator implements the full spec when --mb_enc yes is set:

./sim --device_type PV-3Phase \
      --mb_enc yes \
      --mb_cert  /opt/dersim/certs/modbus/server.pem \
      --mb_key   /opt/dersim/certs/modbus/server.key \
      --mb_root_cert /opt/dersim/certs/modbus/ca.pem

Five things to know about the TLS path that the plaintext path doesn't surface:

• mTLS is mandatory. The server demands a client certificate and verifies it against --mb_root_cert. Plain TLS with no client cert is not Secure SunSpec — the spec defines mTLS as the only conformant mode.
• Cipher list is the spec's mandatory suites by default. The default --mb_ciphers includes the SunSpecTCP-17 set (ECDHE-ECDSA-AES128-GCM-SHA256, ECDHE-ECDSA-CHACHA20-POLY1305, ECDHE-ECDSA-AES128-CCM8). The list ends with @SECLEVEL=0 because OpenSSL 3.x otherwise rejects AES128-CCM8 (64-bit tag). Keep @SECLEVEL=0 in any custom list that needs to offer AES128-CCM8.
• TLS 1.3 is opt-in. Default --mb_tls_version is 1.2 matching the spec; pass 1.2+1.3 to negotiate either, or 1.3 to require it.
• The test PKI is bundled. For lab work where you don't have a real Secure SunSpec PKI, leave the cert flags empty and the simulator loads the bundled cert_592058646942_* test certs. These are well-known LFDIs that match the SunSpec reference client harness.

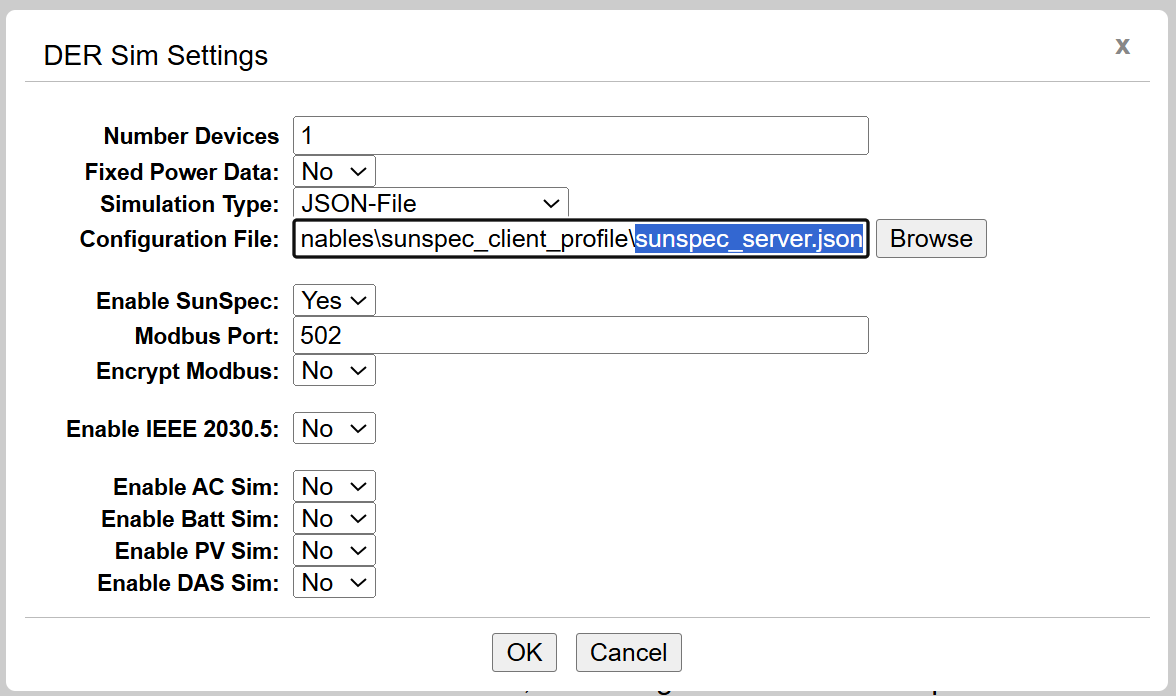

• The same test PKI works against the LabTest GUI. The GUI's "Encrypt Modbus" toggle ships with the same bundled certs; leave both ends on default and they connect cleanly.

Modbus RTU (serial)¶

For lab benches that need to drive the simulator over a real serial line — e.g. through a vendor's SunSpec-compliant gateway — see Modbus RTU.

Modbus Proxy (vendor → SunSpec translation)¶

To put a SunSpec face on a vendor-specific Modbus register map (useful for testing aggregator-side integrations against a fake "vendor X" inverter), see Modbus Proxy.

Dashboard integration¶

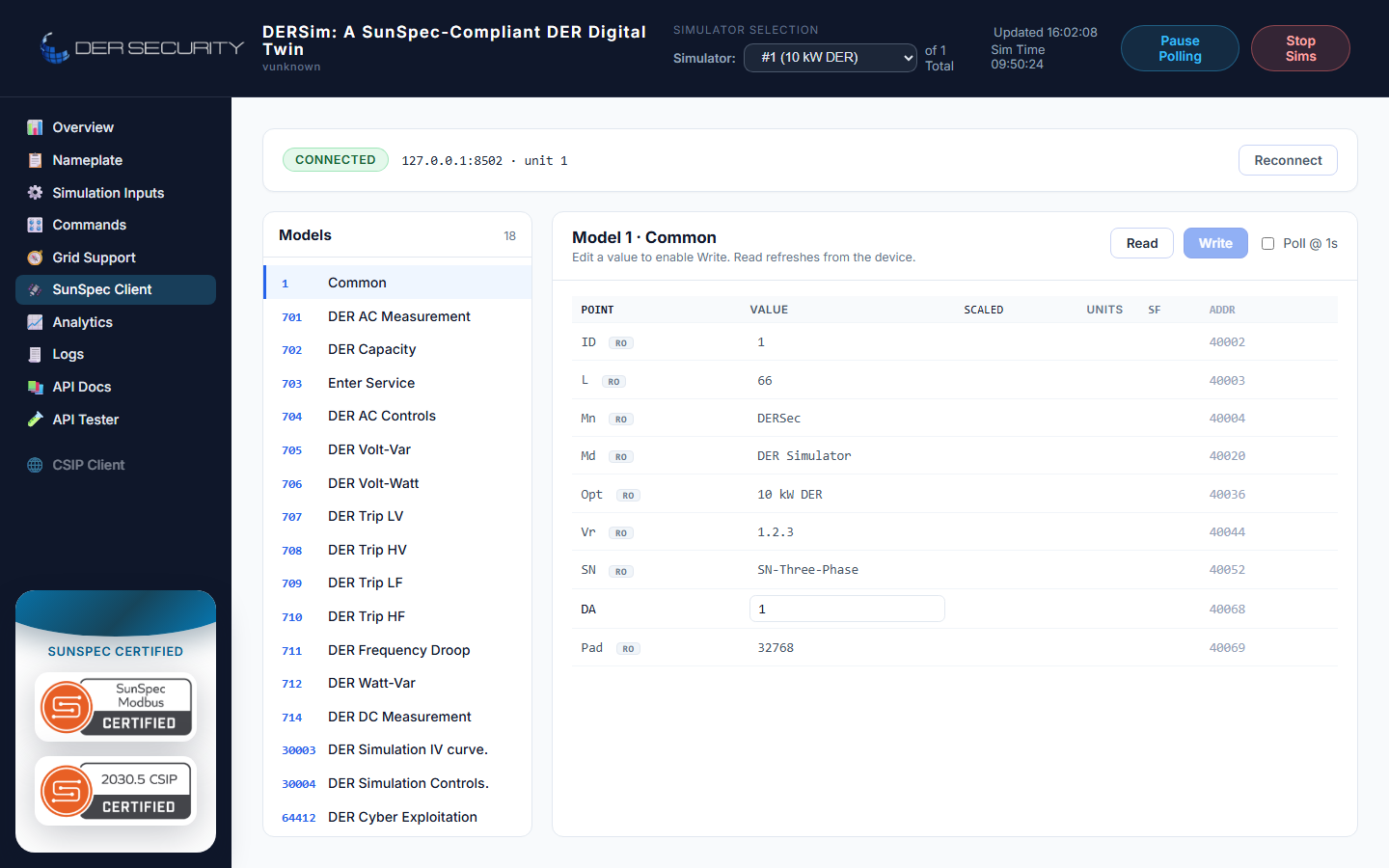

The dashboard's SunSpec Client view connects to the simulator's own Modbus server and walks the model list — it's how the rest of the dashboard reads live data when the simulator runs in Modbus-only mode.

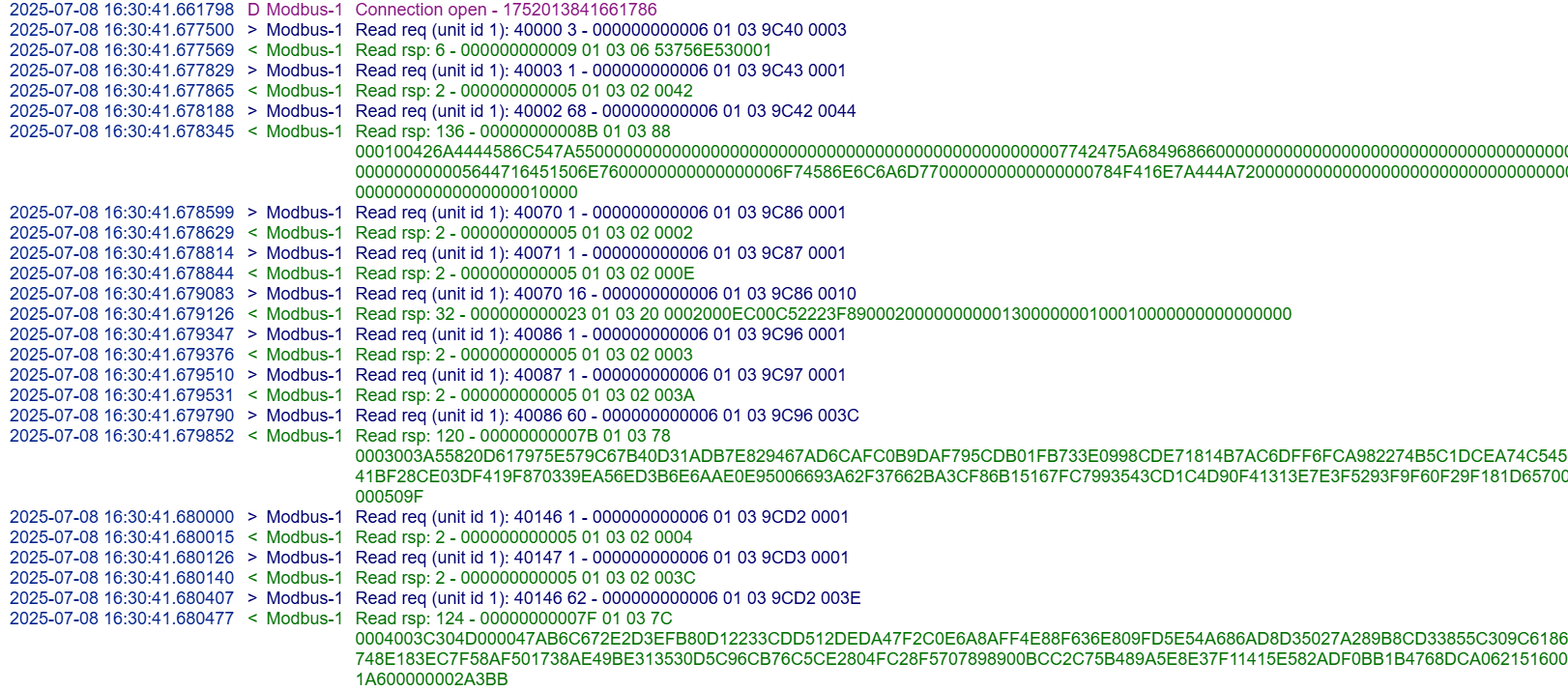

The Modbus traffic log appears in the dashboard's Logs view under the Modbus module tag — every register read / write is logged at Debug.

When to use Modbus vs the REST API¶

The Modbus server is the canonical SunSpec interface; the REST API is the canonical convenient interface. They read and write the same underlying state — there's no Modbus-only or REST-only register.
