IEEE 2030.5 Server

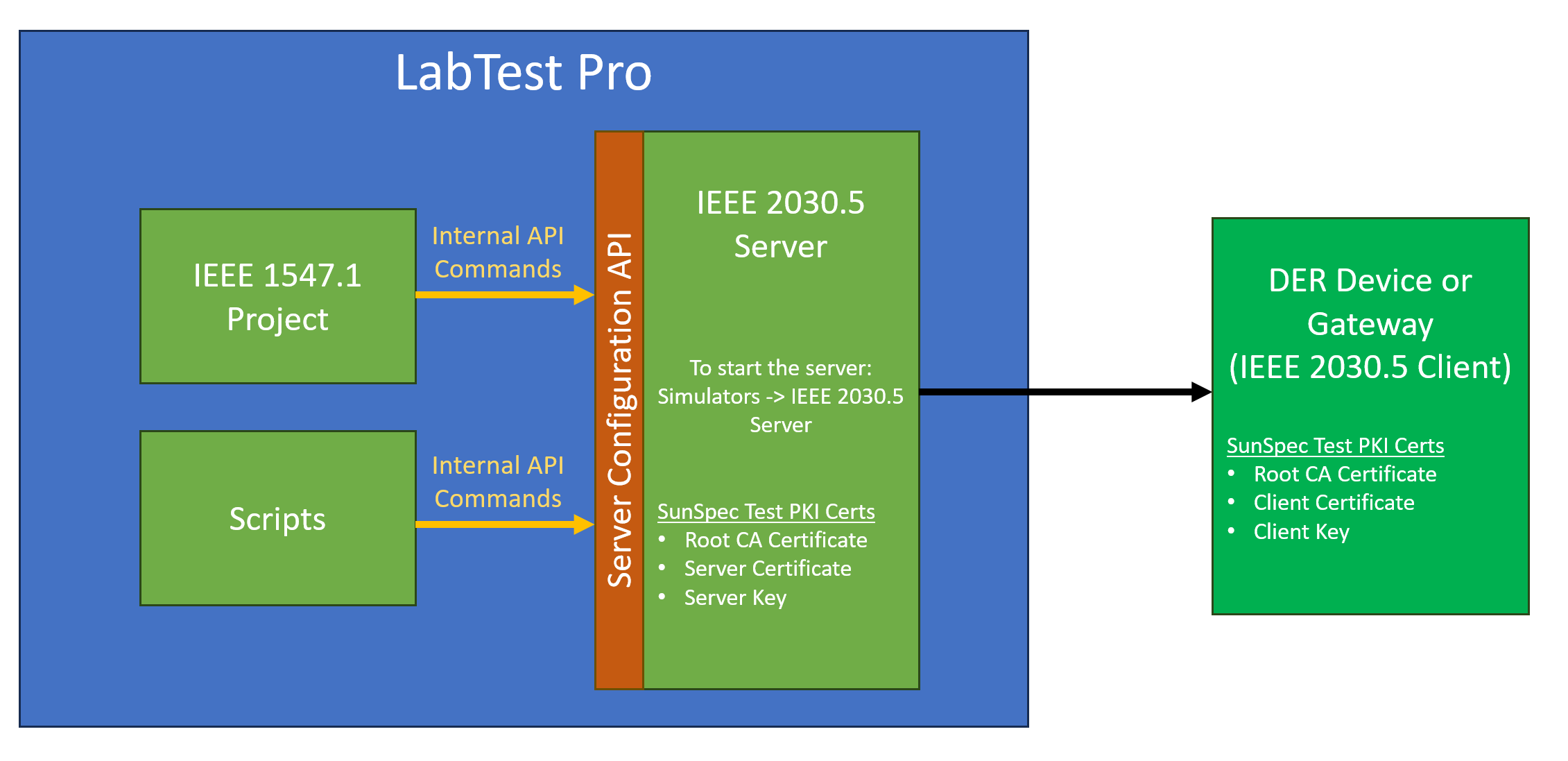

  • The communication architecture for the IEEE 2030.5 server is shown below.

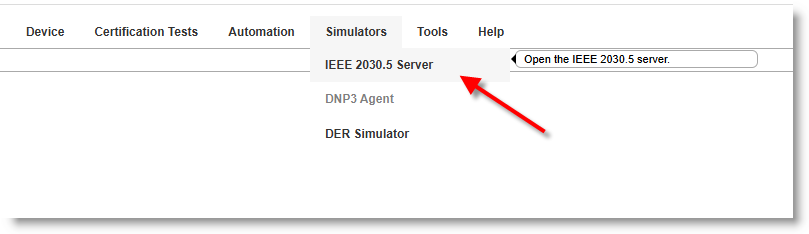

  • Select IEEE 2030.5 Server from Simulators Menu

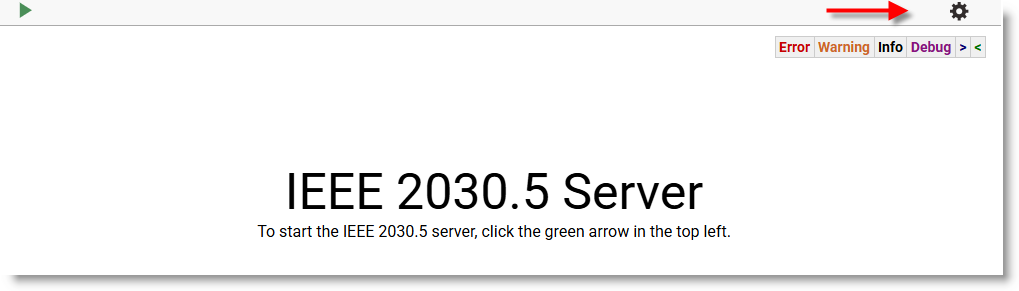

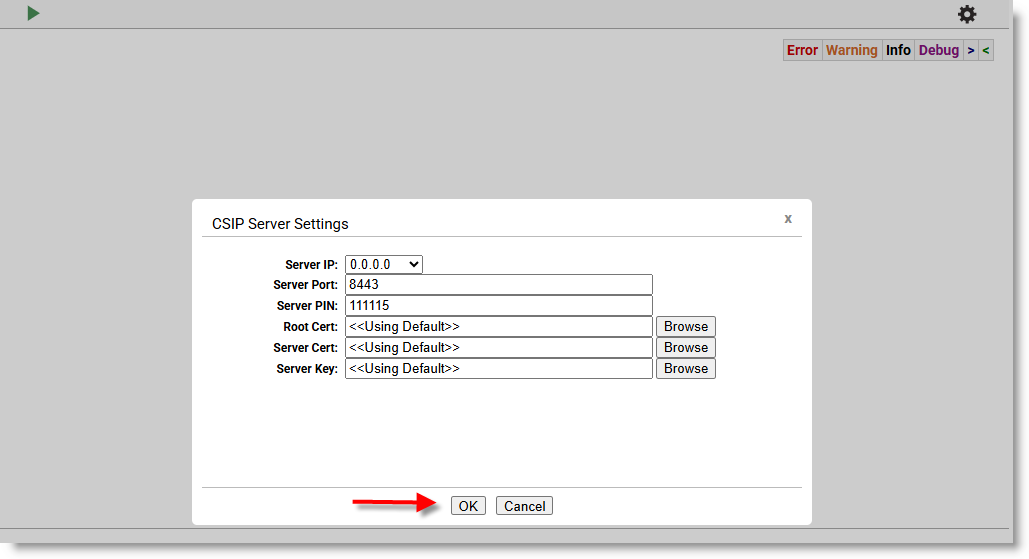

  • Click setting gear to configure the CSIP Server Settings

  • Click OK to accept the default settings, or use your settings then click OK.

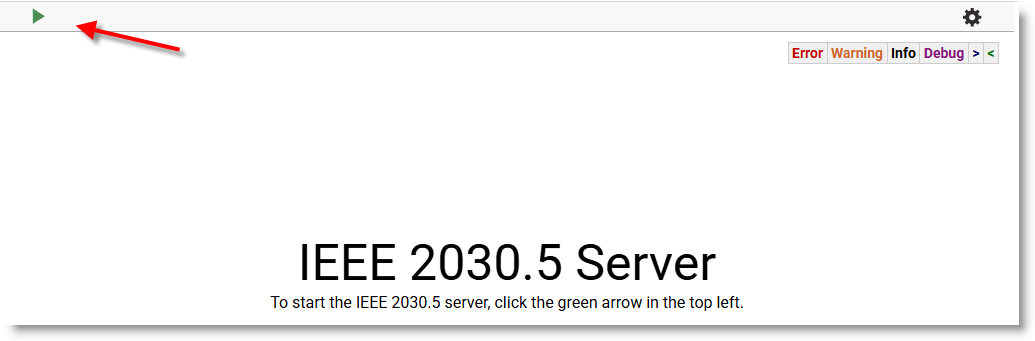

  • Then Click the green button to start the server

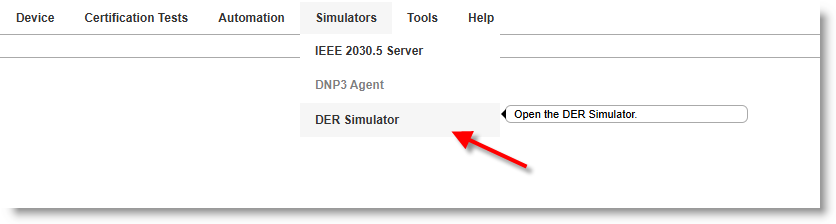

  • Select DER Simulator from Simulators Menu

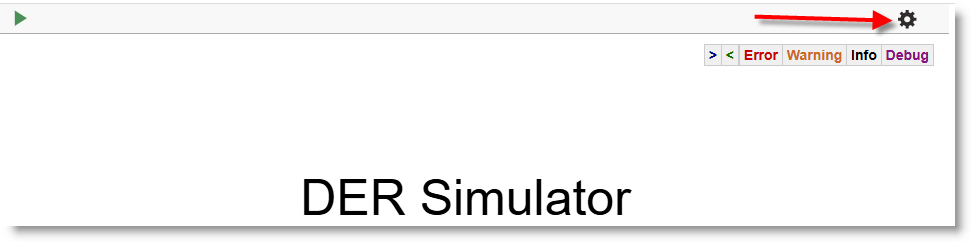

  • Click the setting gear

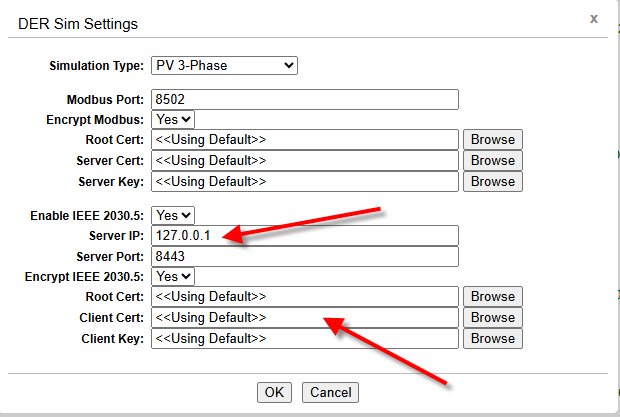

  • To activate Encrypt IEEE 2030.5 on DER Simulator , Click Yes, you will see << Using Default >> Certs and click OK

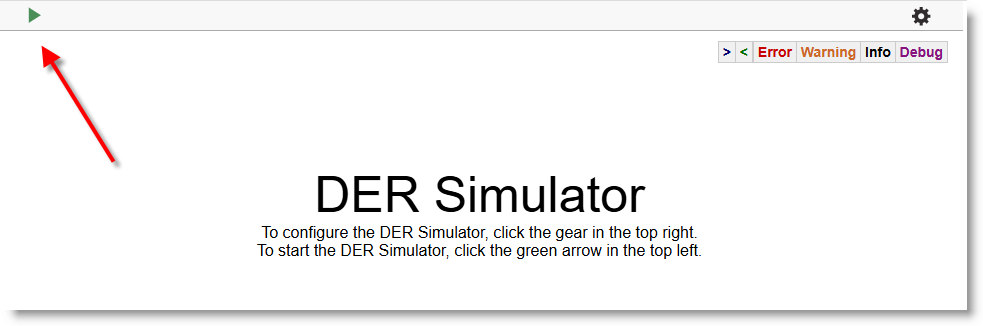

  • Then Click the green button to start the DER Simulator

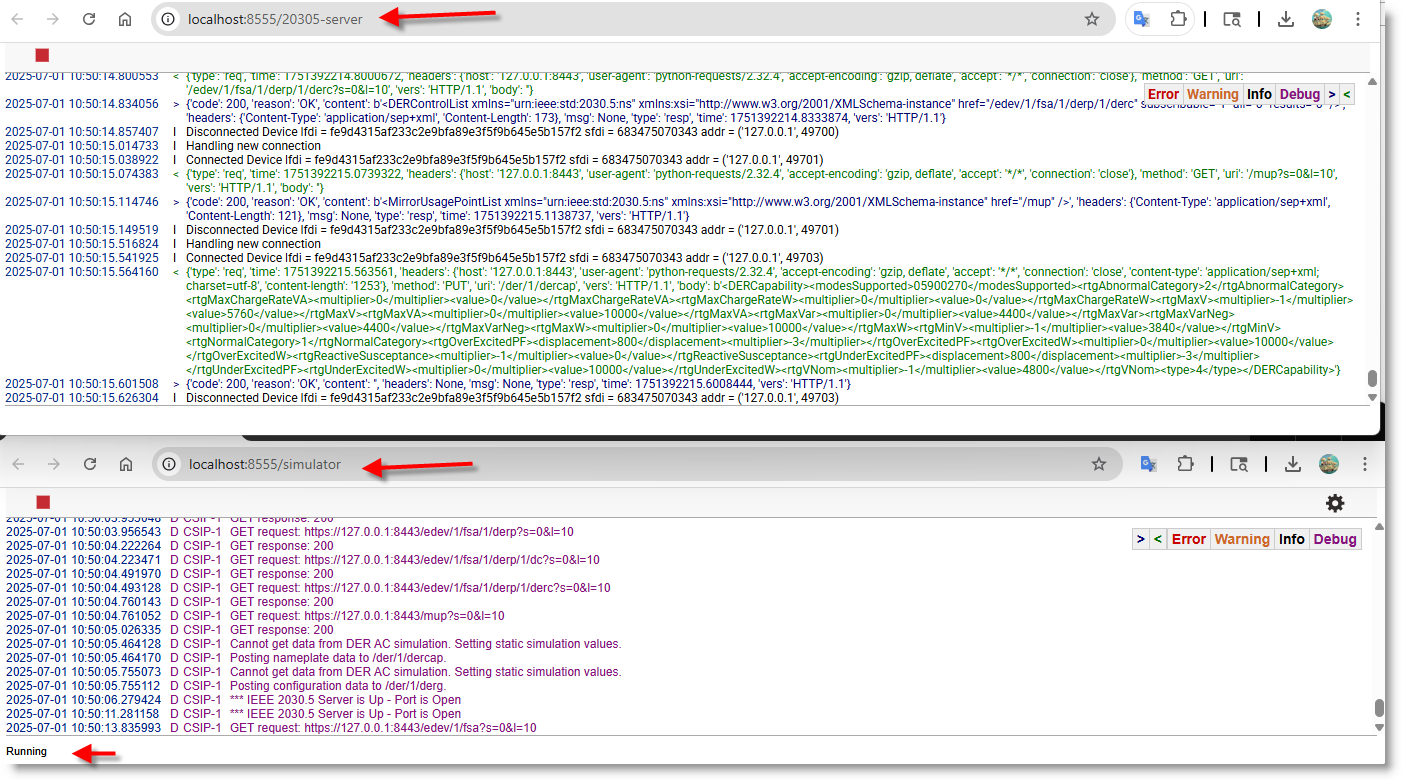

  • Then this is what you should see on each tab
