IEEE 2030.5 Server¶

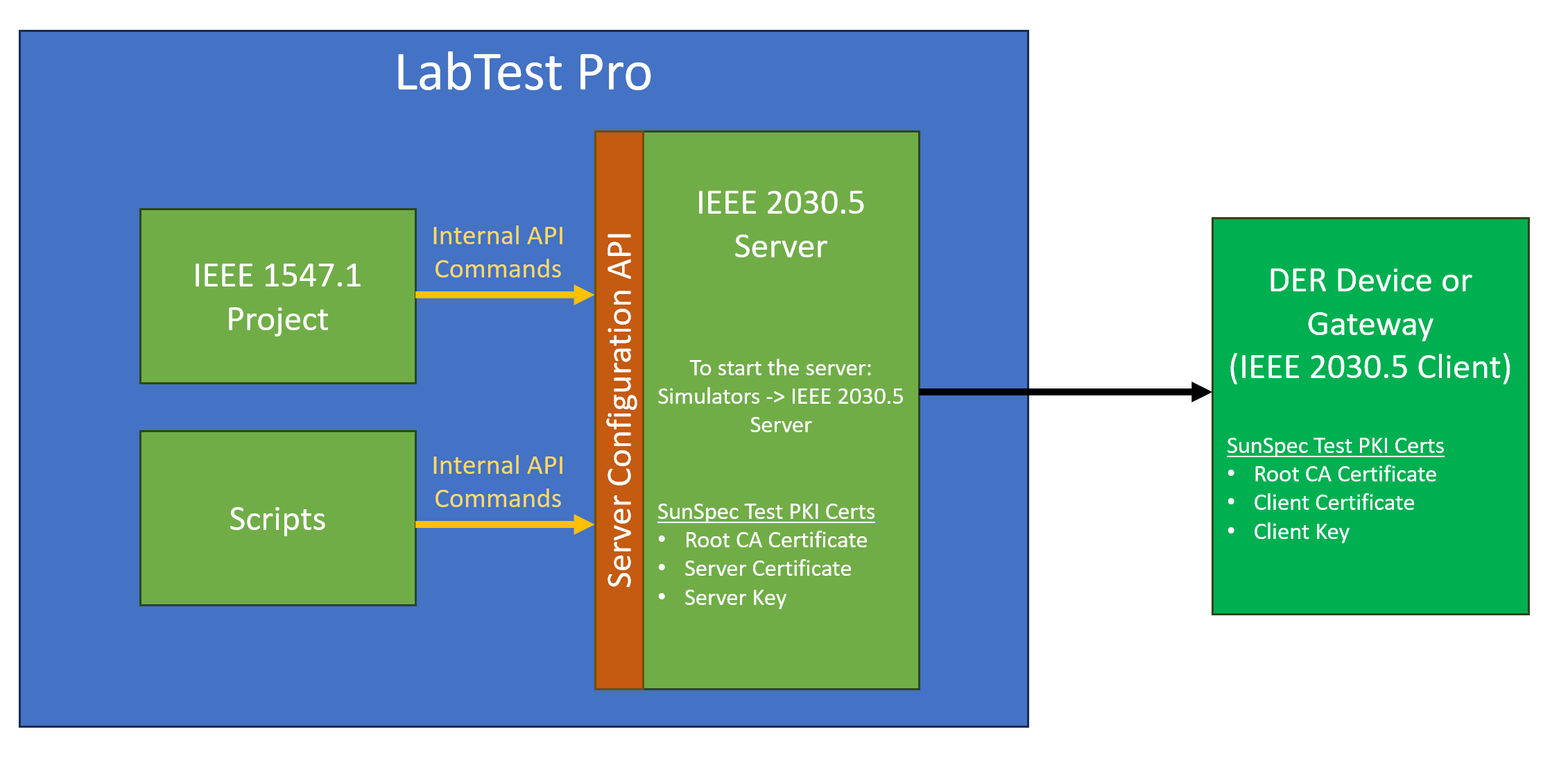

• The communication architecture for the IEEE 2030.5 server is shown below.

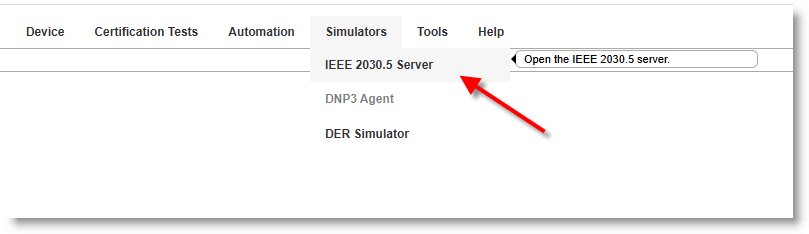

• Select IEEE 2030.5 Server from Simulators Menu

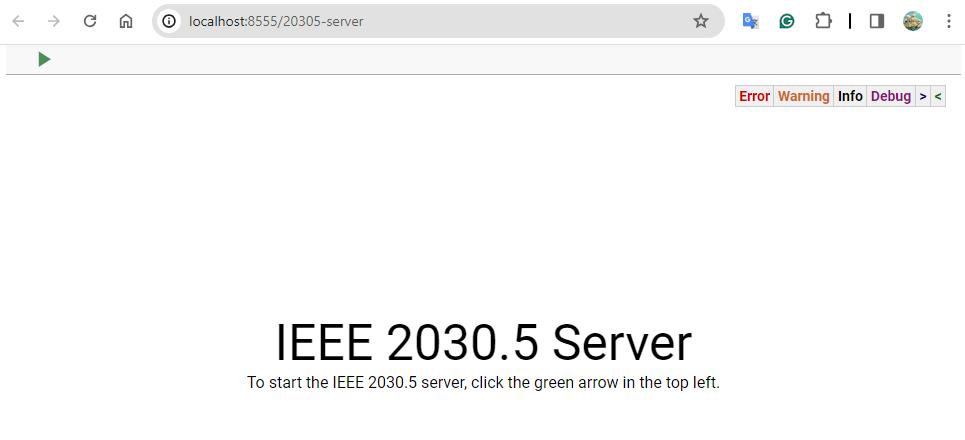

• Then Click the green button to start the server

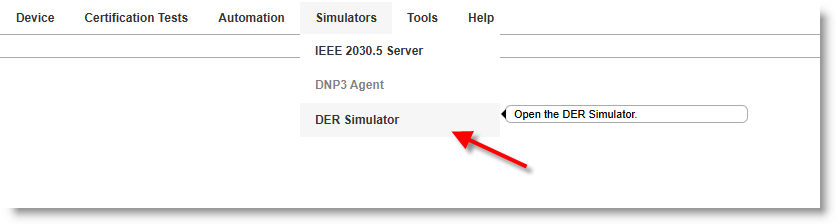

Select DER Simulator from Simulators Menu

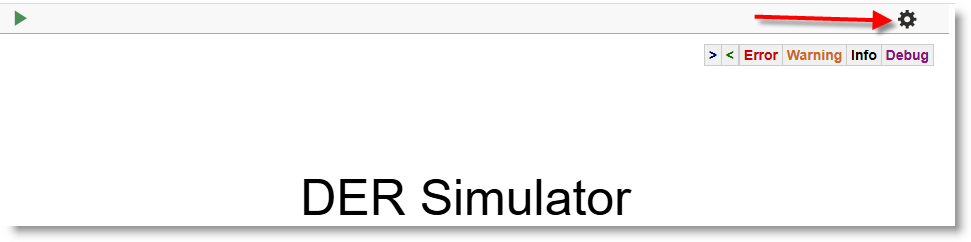

• Click the setting gear

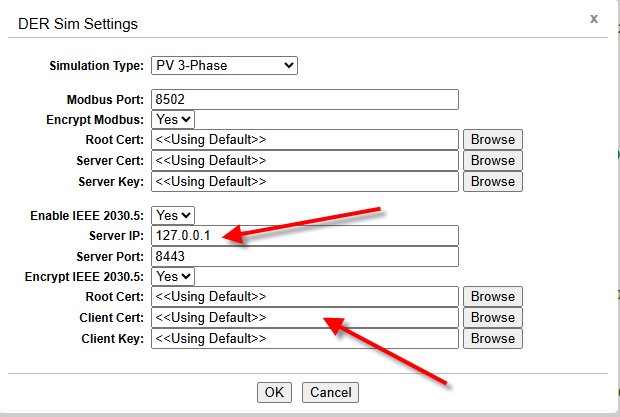

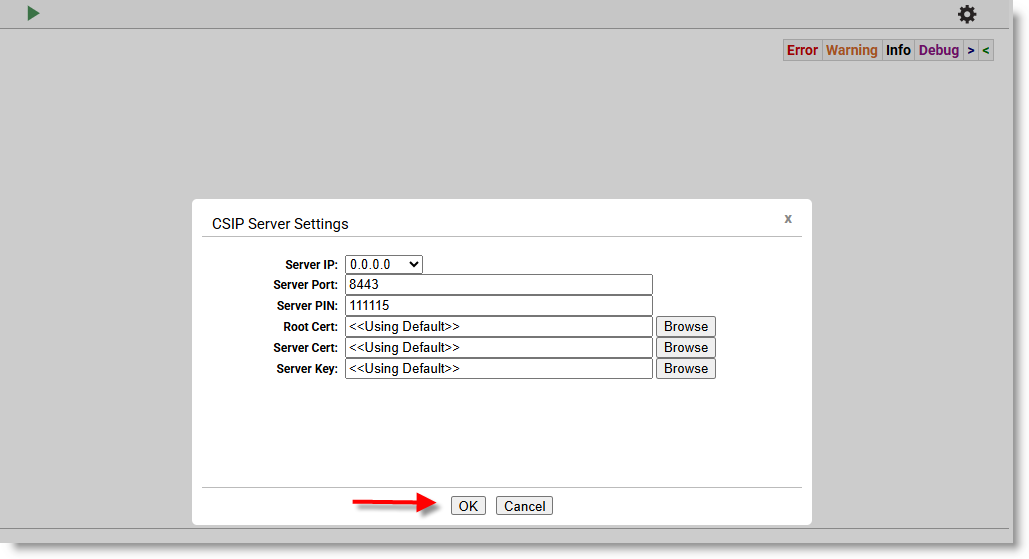

• To activate Encrypt IEEE 2030.5 on DER Simulator , Click Yes, you will see << Using Default >> Certs and click OK

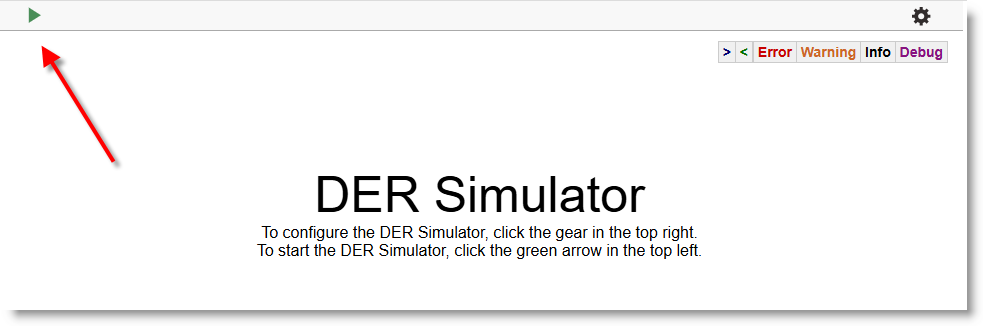

• Then Click the green button to start the DER Simulator

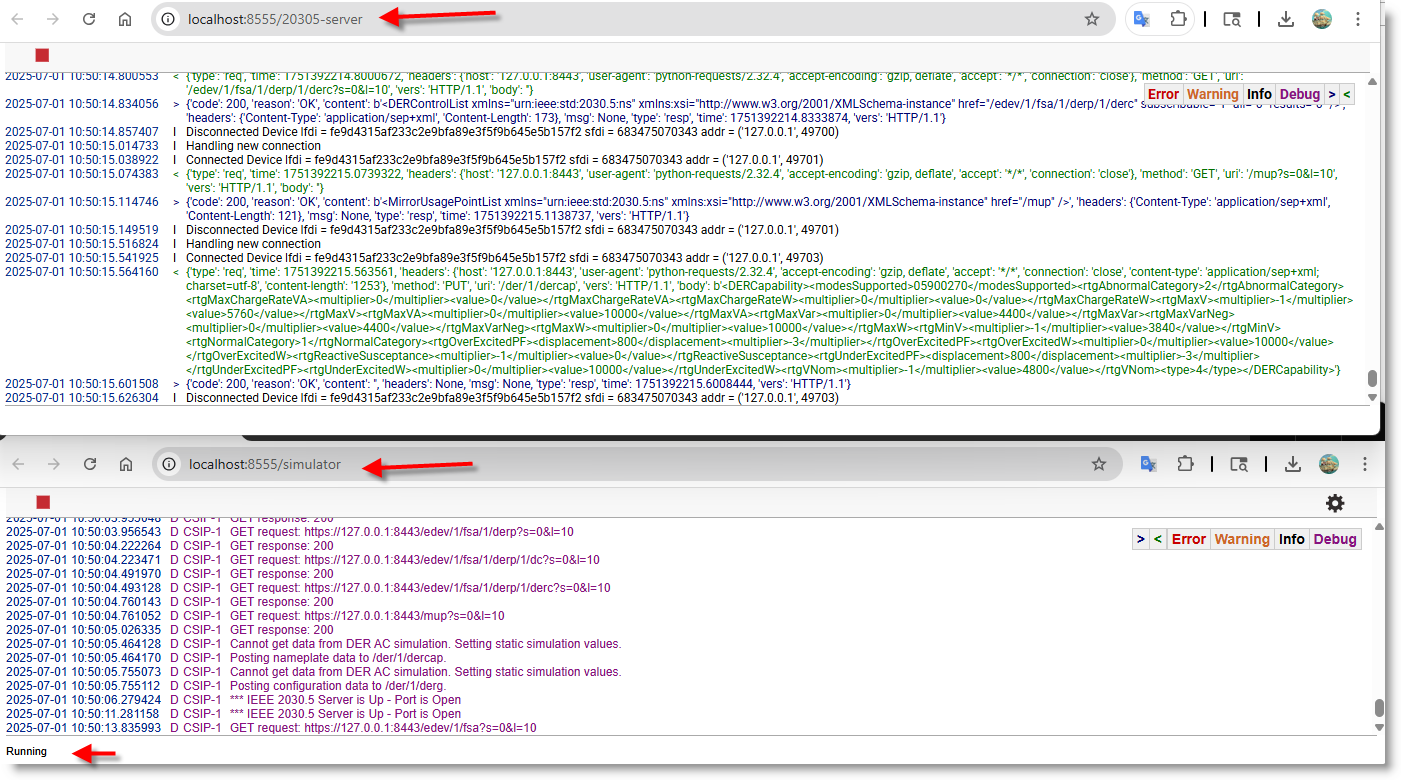

• Then this is what you should see on each tab
